Custom Tile Shower Installation

in Central Florida.

A shower built correctly, tiled precisely, and designed to hold up in Florida's climate for the life of the home. Whether you are building a new walk-in shower from scratch, replacing a failing shower that was never installed right, or adding a custom tile design that your current installer told you was not possible, Joshua handles the full installation from waterproofing through finished tile.

New Shower. Failing Shower. Or the Shower You Have Always Wanted.

Homeowners arrive at this page from three different starting points, and the right service for each is somewhat different.

Building a New Shower

A new shower in a space that has never had one, whether a previously unfinished bathroom, an addition, or a conversion from another room, requires building the full installation from the rough plumbing through finished tile. Joshua evaluates the space during the consultation, confirms what structural and plumbing work precedes the tile installation, and provides a complete project quote covering the full scope of Elite Floor Crafters’ installation work.

Rebuilding a Failing Shower

A shower that is showing signs of waterproofing failure, loose tiles, efflorescence in the grout lines, black mold that does not clean, or water appearing on the ceiling of the room below, cannot be corrected by regrouting or applying sealant over the existing tile. The only correct response to a waterproofing failure is to remove the tile down to substrate, evaluate what is behind it, and rebuild with proper waterproofing. Joshua diagnoses shower failures during the consultation and provides an honest assessment of what the rebuild requires.

Custom Tile Design

Homeowners who have a specific shower tile vision, large-format porcelain on the walls with a custom mosaic floor, a waterjet medallion at the shower floor center, a feature wall in a contrasting tile behind the showerhead, or any design that requires precision tile work beyond what most local installers offer, arrive here because the tile page’s waterjet differentiator caught their attention. Joshua executes custom shower tile designs that other Central Florida tile installers decline or cannot produce.

What Your Shower Is Telling You and
What the Fix Actually Requires.

Shower failures in Florida homes are usually visible long before the full extent of the damage becomes apparent. The symptoms below are the diagnostic signals that indicate what is happening behind the tile and what the correct remediation involves. Regrouting and sealing address none of these problems at their source.

Visible Symptom	What It Usually Means	What the Fix Requires
White chalky deposits on grout lines (efflorescence)	Water moving behind the tile, dissolving mineral salts in the mortar, and depositing them on the surface as it evaporates. Active waterproofing failure.	Full shower demolition to substrate, waterproofing evaluation, and correct rebuild. Cannot be corrected by regrouting.
Tiles hollow or loose when tapped	Mortar bond failure behind the tile. Often caused by inadequate mortar coverage (less than 95% in wet areas) or incompatible substrate movement.	Removal of hollow tiles or full section, substrate evaluation, and retile with correct mortar coverage and adhesive system.
Grout cracking at wall-floor corners	Movement between wall and floor tile planes. 90-degree corners in wet areas require flexible sealant, not grout. A common installation error.	Remove cracked grout at corners and inside corners. Replace with color-matched flexible silicone sealant. Not a structural failure if addressed promptly.
Mold visible on ceiling below shower	Active water leak through the shower floor or wall. Water penetrating through failed waterproofing into framing. Structural damage likely in progress.	Full shower demolition required. Evaluate framing and subfloor for damage. Replace damaged structural elements before any new installation.
Black staining in grout that does not clean	Mold growing within or behind the grout, fed by moisture in the grout joint or behind the tile. Surface cleaning does not reach the mold source.	Regrout with epoxy grout if mold is surface-level. Full demolition and waterproof rebuild if mold has penetrated behind the tile layer.
Water staining on adjacent wall or floor outside shower	Leak at the shower curb, door seal failure, or through the shower floor perimeter where tile meets curb or threshold.	Identify leak location. May be correctable with perimeter sealant replacement at curb. Full evaluation required to rule out substrate failure.

If your shower shows any of the symptoms in the first column, contact Joshua for an on-site evaluation before the damage progresses. Early diagnosis limits the scope of the rebuild required.

Tile Options for Every
Shower Design Direction.

The tile selection for a custom shower involves coordinated decisions across wall tile format, floor tile type, grout color, niche tile, and any accent or feature wall elements. Joshua brings the full selection to your bathroom during the consultation so every decision is made in your actual space, under your actual light, with all the materials visible at once.

Tile Format / Type	Best Shower Application	Installation Notes
12×24 Porcelain (Wall)	Primary shower wall tile. The most widely specified format for Central Florida shower walls.	Stacked or offset joint pattern. Horizontal lay emphasizes width. Requires leveling system on taller walls. 95% mortar coverage required.
24×48 Porcelain (Wall)	Large master bath showers. Contemporary direction. Maximum seamless visual quality.	Full leveling system required. Large-notch trowel and back-buttering mandatory. Most technically demanding wall tile format.
Subway Tile (3×6, 4×12)	Traditional and transitional showers. Enduring pattern with wide design adaptability.	Running bond or stacked layout. 4×12 format has stronger visual presence than 3×6 in larger showers. Grout color is a significant design variable.
2×2 Mosaic (Floor)	Shower floor. Standard for tiled shower floors requiring slip resistance and mortar bond to pre-sloped pan.	Sheet-mounted. Pre-slope beneath floor tile mandatory. Grout joints provide traction and allow floor slope to express naturally.
1×1 or 1×2 Mosaic (Floor)	Small shower floors, shower niches, and feature areas. High grout joint density provides maximum slip resistance.	More grout joints mean more maintenance. Epoxy grout specified in all Florida shower floors for mold and staining resistance.
Pebble / River Stone	Walk-in shower floors for organic, spa aesthetic. Popular in master bath conversions.	Mounted on mesh backing. Irregular surface requires more grout, more maintenance. Seal required. Not suitable for households with mobility limitations.
Large Format Slab (24×48+)	Feature walls, full-height shower walls in premium installations, wet room applications.	Highest installation complexity. Full leveling system. Substrate must be premium flat. Requires experienced large-format tile installer.

Custom Waterjet Tile: What Is Possible When the Installer Has the Capability.

Custom Waterjet Cut Tile in Shower Applications

Elite Floor Crafters is one of the few tile installers in Central Florida with custom waterjet cutting capability. In a shower installation, this opens design options that standard tile cutting equipment cannot produce:
Shower floor medallions: A custom waterjet medallion at the center of a walk-in shower floor, set into the mosaic field tile, is the design element that defines a premium master bath shower. No standard tile cut produces this result.
Feature wall accent panels: A geometric or decorative waterjet-cut accent panel set into a larger tile field on the shower feature wall behind the showerhead creates a focal point that photographs in every bathroom photo and is visible from the bathroom door.
Niche borders and frames: A waterjet-cut border or frame around a shower niche makes the niche a design feature rather than just a storage recess.
Arched entries and radius cuts: Curved shower entries, arched niches, and any installation requiring radius cuts that a straight-cut diamond blade cannot produce cleanly.
If you have a shower design in mind that involves any of the above, bring it to the consultation. Most Central Florida homeowners who want custom shower tile have been told it is not available locally. It is available here.

The Details That Make a Custom
Shower Feel Custom.

The difference between a tiled shower and a designed shower is most visible in the details: how the niche is integrated into the wall tile layout, whether the bench tile aligns with the wall tile grid, how the floor tile transitions at the curb, and how the cut tiles at the top of the wall are handled. These are the details that reveal whether the installer planned the installation or just tiled up from the floor and cut whatever landed at the top.

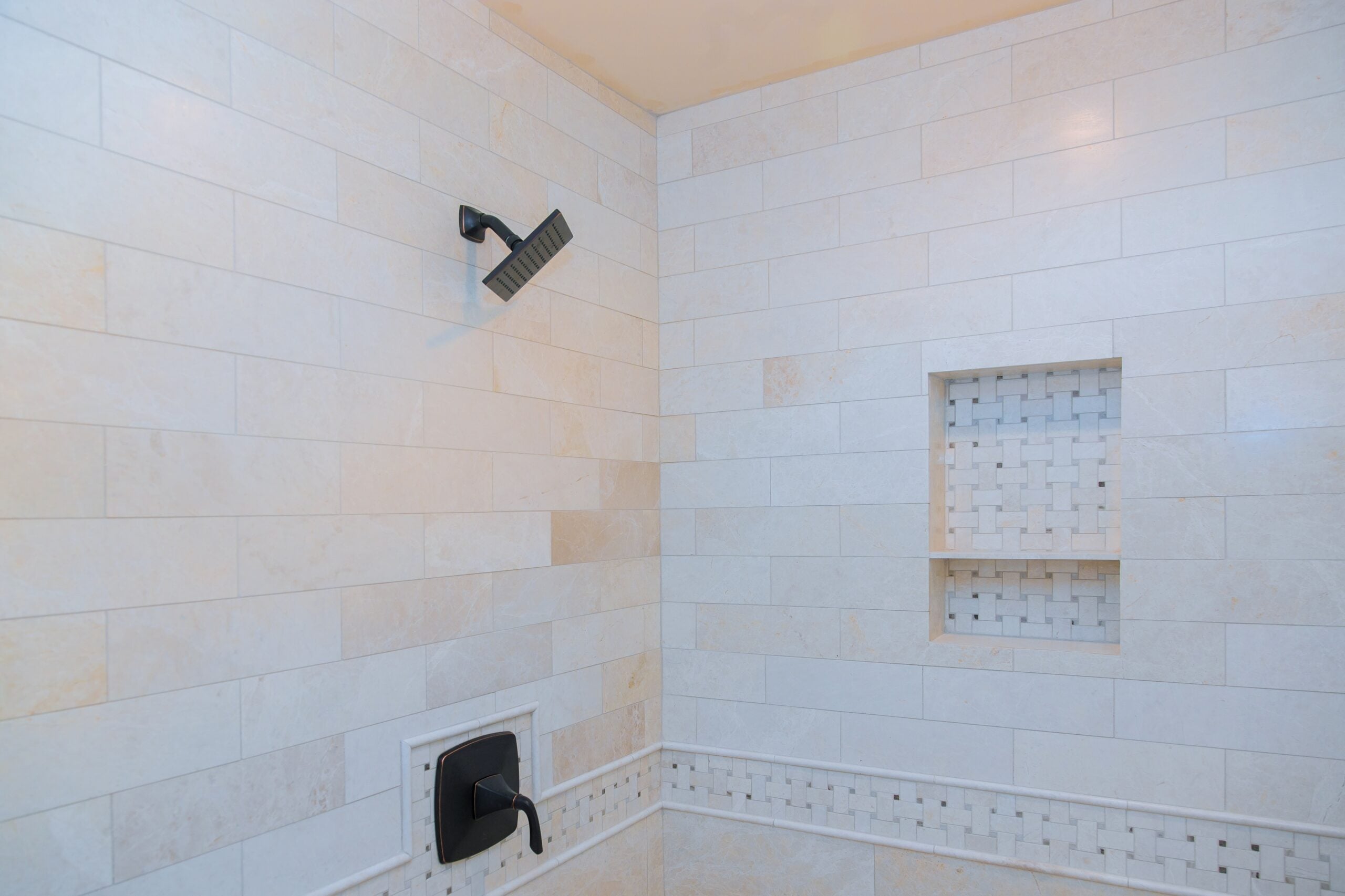

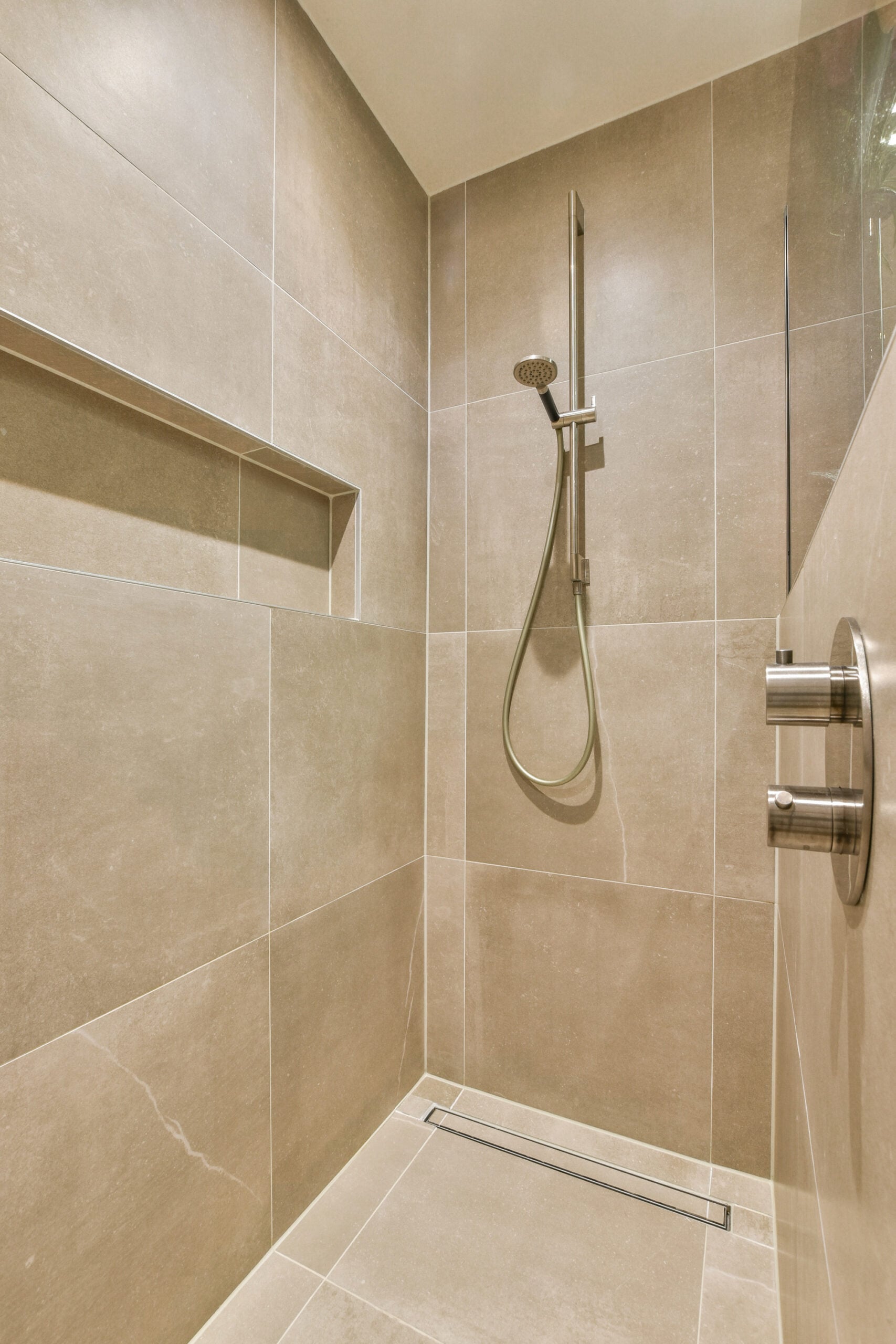

Recessed Niches

Shower niches are framed and positioned before tile begins so the niche interior is waterproofed as part of the continuous membrane system rather than as an afterthought. Niche height is planned relative to the wall tile layout so the niche opening aligns with grout joints in the surrounding tile rather than cutting through the middle of a tile course. Niche tile can match the wall tile, contrast with it as an accent, or use a mosaic that ties the niche visually to the shower floor.

Built-In Benches

A tiled shower bench is one of the most requested additions to a master bath shower conversion or new shower installation. The bench is formed before tile begins, waterproofed as part of the continuous membrane, and tiled so the bench surface tile aligns with the surrounding wall tile grid. The nosing edge of the bench is detailed with the same care as the shower curb: a clean tile edge that drains water away from the bench surface and does not collect standing water.

Tile Layout Planning

A shower tile layout is planned before the first tile is set. Reference lines are established from the visual center of the primary shower wall. Cut tiles are planned to land symmetrically on opposite sides of each wall so the installation reads as centered and intentional. The relationship between wall tile and floor tile at the curb is evaluated before ordering so the grout joints align across the transition. These decisions happen at the planning stage, not during the installation, because they cannot be corrected after the tile is down.

Waterproofing: The Foundation Every Shower Tile Installation Is Built On.

Every shower tile installation Joshua performs includes a correctly specified and correctly applied waterproofing membrane beneath the tile. In Florida’s climate, this is not optional and is not a premium add-on. It is the correct specification for any shower installation in this market.

The shower failure diagnosis table in Section 2 shows what happens when waterproofing is inadequate. Efflorescence, hollow tiles, mold in the wall cavity, and water on the ceiling of the room below are not tile failures. They are waterproofing failures that express themselves through the tile. The tile is the last line of defense, and it is not designed to be the waterproofing layer.

Waterproofing standards on every Elite Floor Crafters shower tile installation:

No paper-faced drywall or standard greenboard in any wet zone: cement backerboard or equivalent substrate only
Continuous waterproofing membrane across shower floor, up walls, and into all recesses including niches and bench surfaces
Corners reinforced with fabric tape or pre-formed corners before membrane application
Drain collar integrated into the membrane at the shower floor so the waterproofing plane is continuous through the drain penetration
95% mortar coverage minimum on all shower tile: back-buttering required on all tile larger than 12 inches in either dimension
Grout joints at wall-floor corners and all inside corners filled with flexible silicone sealant, not grout
Epoxy grout specified for shower floor tile in all Florida installations

SERVICE AREA

Custom Shower Tile That Most Central Florida Installers Cannot Execute.

Most tile installers in Central Florida can install a standard subway tile shower. The buyers who arrive here typically have a different need: they want large-format porcelain installed flat and level on shower walls that are rarely perfectly plumb, they want a custom tile pattern in the floor that requires more than a straight diamond blade cut, or they have a failing shower that has been improperly installed and need someone who can diagnose what went wrong and fix it correctly rather than tiling over the problem.

Joshua’s tile installation expertise covers all three. His career installing tile in Florida homes means he understands this climate’s specific demands on a shower installation, how to read a shower failure and identify its source, and how to execute custom tile work that other installers quote as not possible. The waterjet cutting capability is the visible example, but the underlying competence is the precision of large-format tile installation on imperfect walls and the discipline to waterproof every wet area as if it will never be accessible again once the tile goes on.

Built Right. Waterproofed for Florida. Tiled the Way You Want It.

Joshua brings the full tile selection to your bathroom, evaluates your existing shower or the new shower space, and gives you a complete quote covering tile, waterproofing, installation, and any custom design elements. The consultation is free and includes an honest assessment of what your shower requires.

SERVICE AREA

Custom Tile Shower Installation Across Central Florida.

Elite Floor Crafters installs custom tile showers throughout Ocala, Gainesville, The Villages, Citrus County, and surrounding Central Florida communities. Joshua brings the full tile selection to your home during the free in-home consultation so every design decision is made in your actual bathroom before any work begins.

Call or text 352-520-9400 to schedule your consultation.

FAQs

Frequently Asked Questions About Custom Tile Shower Installation

How long does a custom tile shower installation take?

A standard custom tile shower installation, including substrate preparation, waterproofing, tile installation, and grout cure, runs five to nine days. Larger showers with complex tile layouts, custom waterjet elements, or benches and multiple niches run eight to twelve days. Joshua provides a realistic project timeline during the free in-home consultation based on the actual scope and tile format selected for your shower.

What is the best tile for a walk-in shower in Florida?

Vitreous or fully vitrified porcelain is the correct specification for shower tile in Florida because it absorbs virtually no water even without glaze. For shower walls, 12×24 or larger format rectified porcelain creates a seamless visual quality with fewer grout joints to maintain. For shower floors, 2×2 mosaic tile provides the grout joint density needed for traction on a pre-sloped surface. All shower floor grout in Florida should be epoxy.

Can you install large-format tile on shower walls?

Yes. Large-format tile on shower walls is a specialty installation requiring a tile leveling system, back-buttering every tile, and a substrate that is plumb and flat within the tile manufacturer’s tolerance. Most shower walls in Central Florida homes are neither perfectly plumb nor perfectly flat. Joshua evaluates the wall condition during the consultation and addresses any preparation required before large-format tile is specified for the walls.

What causes shower tile to come loose from the wall?

Loose shower wall tile is almost always a mortar bond failure caused by inadequate mortar coverage behind the tile, an incompatible adhesive for the substrate or tile type, or movement between the tile and a substrate that was not designed to be rigid in a wet environment (standard drywall, OSB, or un-backed greenboard). In Florida’s humidity, bond failures occur faster than in dryer climates because the substrate movement caused by moisture cycling is more frequent.

Does every shower niche need to be waterproofed separately?

Yes. A shower niche is a penetration into the wall that is fully exposed to wet shower conditions on all five visible surfaces and at every corner. The waterproofing membrane must be continuous across the niche interior, with reinforced corners and a continuous connection to the membrane on the surrounding wall. A niche that is tiled without its own waterproofing is a direct path for water to enter the wall cavity behind the tile.

What is epoxy grout and why is it specified for Florida shower floors?

Epoxy grout is a two-part system that sets harder, denses more uniformly, and resists moisture, staining, and chemical exposure significantly better than standard cement grout. Florida shower floors are subject to standing water during use, high ambient humidity, and the mold conditions that follow. Epoxy grout does not absorb moisture, does not support mold growth in the joint, and does not require sealing. It is the professional specification for shower floor tile in Florida’s climate.

Can Elite Floor Crafters repair a shower with efflorescence without full demolition?

It depends on the extent of the waterproofing failure causing the efflorescence. Efflorescence is mineral salt deposit left by water moving through the tile system, which means the waterproofing membrane has failed and water is actively reaching the mortar or substrate behind the tile. Minor localized efflorescence with isolated tile looseness may be addressable through section removal and targeted repair. Widespread efflorescence almost always indicates a full demolition and rebuild is required. Joshua evaluates the extent during the on-site consultation.
